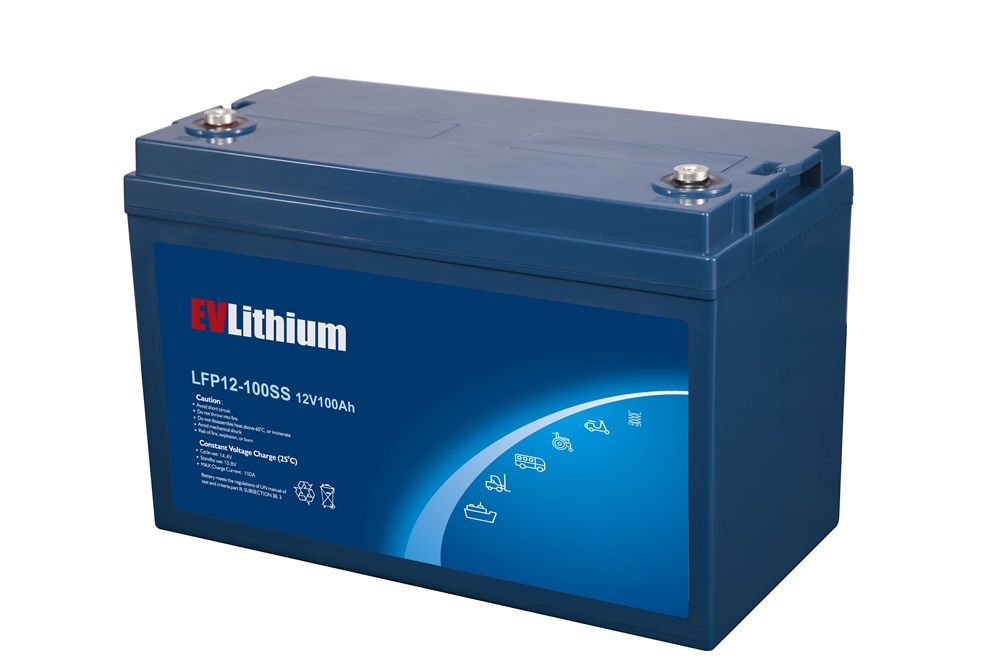

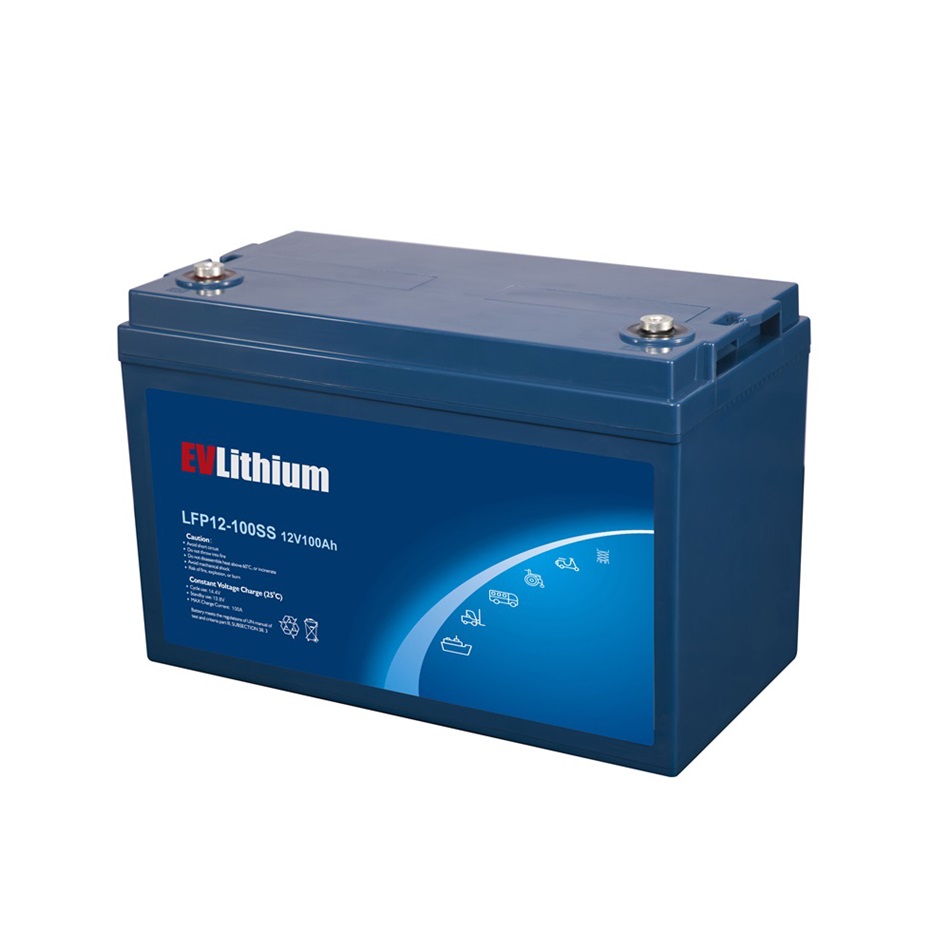

12V 100Ah Lithium Iron Phosphate deep cycle lifepo4 Battery

12V 100Ah Lithium Iron Phosphate deep cycle lifepo4 lithium iron phosphate battery pack used for energy storage system, solar system

12V 100Ah Lithium Iron Phosphate deep cycle lifepo4 Battery


12v lifepo4 deep cycle batteryfeature

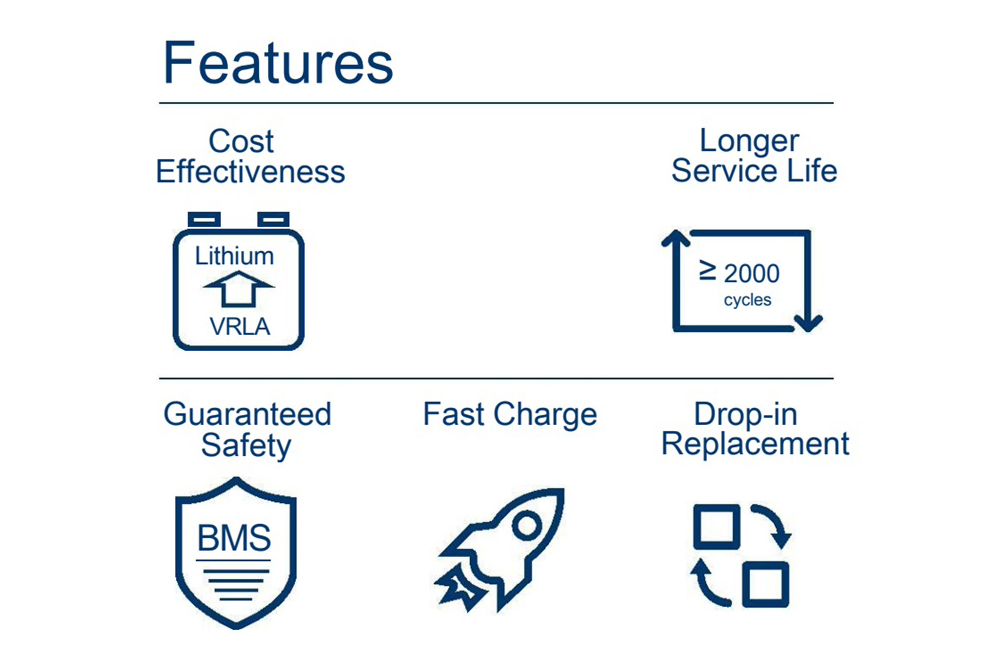

Features


· Cost Effectiveness

· Longer Service Life

· Guaranteed Safety

· Fast Charge

· Drop-in Replacement


Technical Characteristics


NORMAL CHARACTERISTICS

Nominal Voltage

12.8 V

Nominal Capacity

100Ah

Energy

1280Wh

IR

≤12mΩ@100%SOC

Efficiency

≥99.5%


Maximum Modules in Series

2(Single Use)

CHARGE & DISCHARGE CHARACTERISTICS

Voltage Range

10.8-14.6V

Max. Continuous Charge Current

100A

Max. Continuous Discharge Current

100A

Peak Discharge Current

200A(15s±2s)

Recommended charge current/A

50A

Recommended discharge current/A

50A

Charge current cut-off/A

3A

OPERATING CONDITIONS

Cycle Life

≥2000

Operating Temperature

Charge: 10℃~45℃


Discharge: -20℃~55℃

Storage Temperature

20℃~30℃

MECHANICAL CHARACTERISTICS

Case Material


ABS

Dimension(L*W*H)

306*169*215mm

Weight

10.3Kg

Terminal Type

F12(M8)

Cell Type-Chemistry

Prismatic LiFePO4




BMS CHARACTERISTICS


Primary Charging Protection: Current: >105.0±2.5A, Delay time:15±2s

Secondary Charging Protection: Current: >120.0A±2.5A, Delay time: 2±1s

Primary Discharging Protection: Current: >105.0±2.5A, Delay time: 20±1s

Secondary Discharging Protection: Current: >210.0A±2.5A, Delay time: 1±1s

Over-charge Voltage Protection: Voltage: >14.8±0.2V, Delay time: 2±0.5s

Over-discharge voltage protection: Voltage: <9.6±0.2V, Delay time: 2±0.5s

High Temperature Protection: Charging: 65±3℃ Recover: 60±3℃, Discharging: 65±3℃ Recover: 60±3℃

Low Temperature Protection: Charging: 0±3℃ Recover: 3±3℃, Discharging: -20±3℃ Recover: -15±3℃

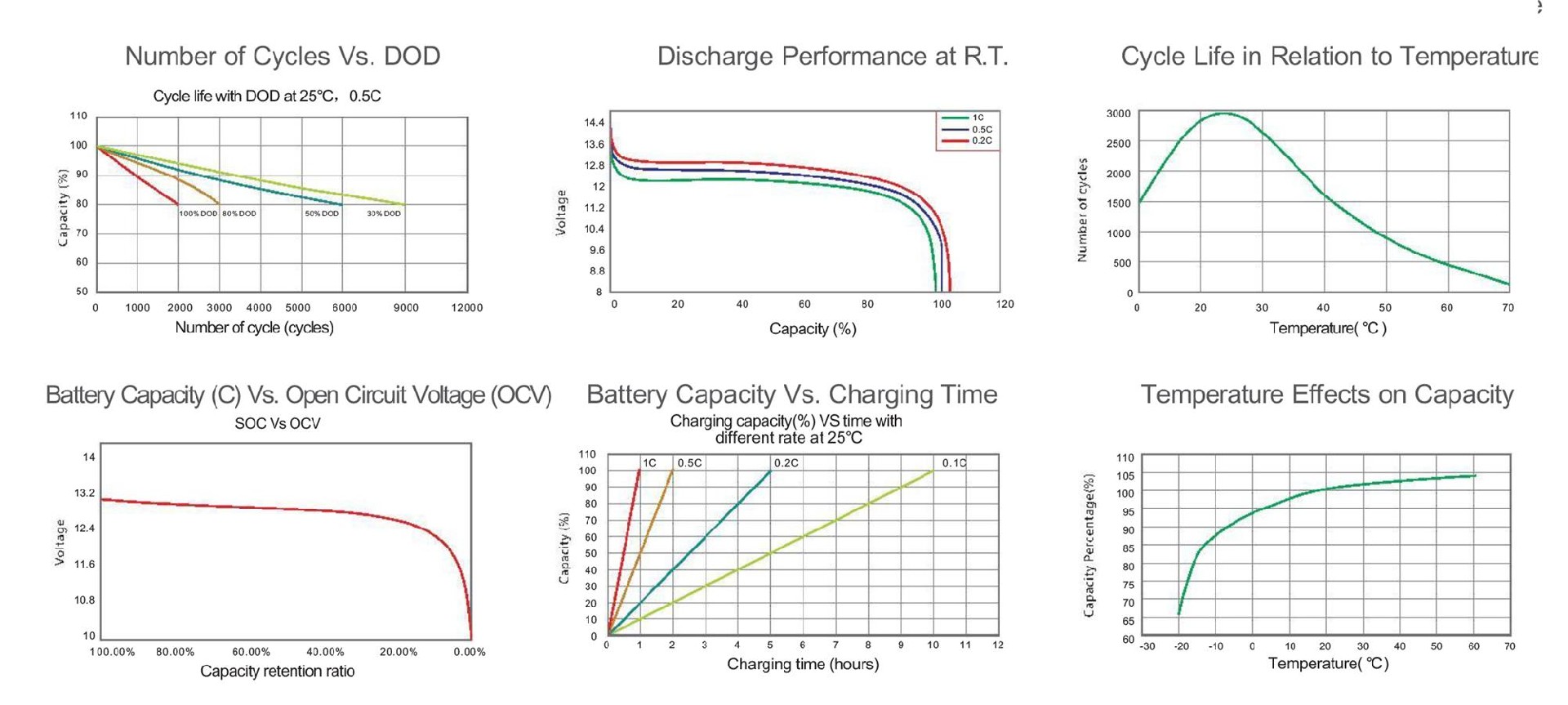

Cycle No. Vs DOD%


curve
