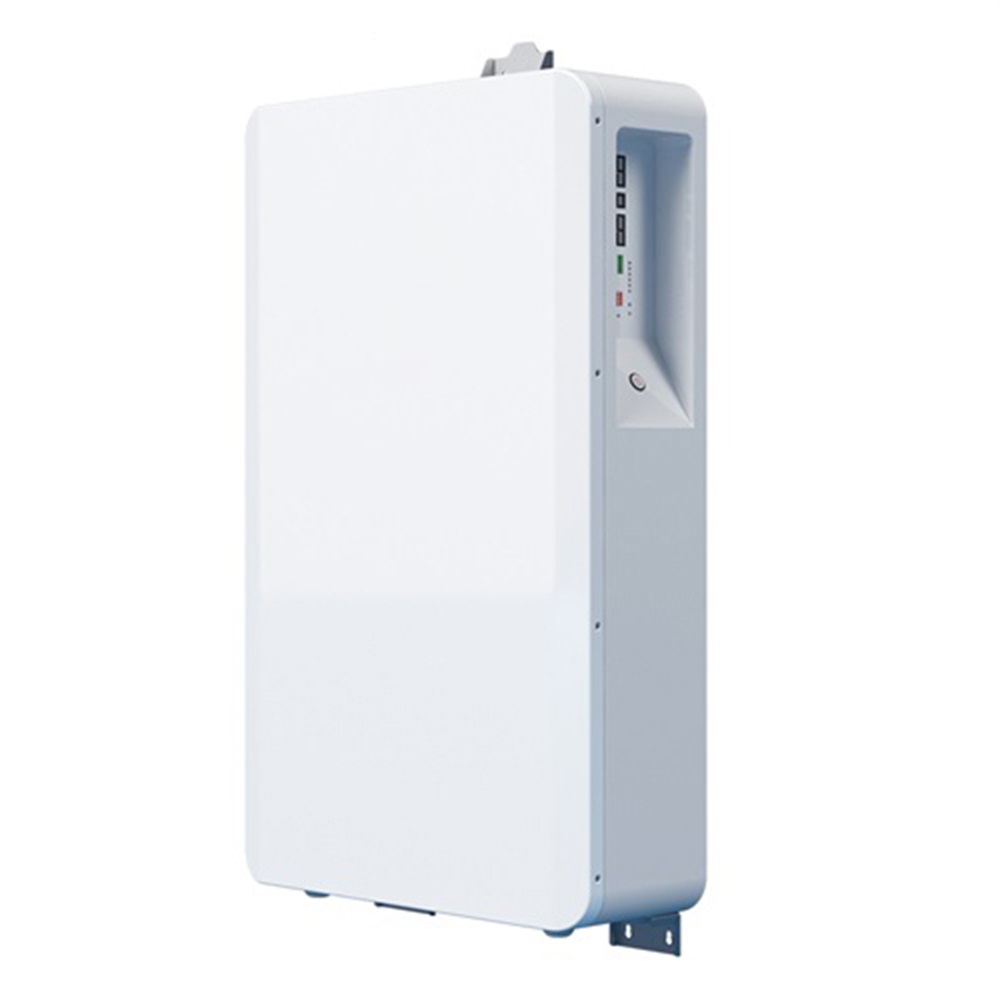

48v 100ah 5kw lifepo4 solar power wall mounted lithium battery

48v 100ah 5kw lifepo4 solar power wall mounted lithium battery

pirture






Applications

1. Solar charge the battery during the day.

2. Use your stored energy anytime to power your home

3 It can be used as a backup in the city during a power outage





This product is mainly combined with the inverter, photovoltaic (PV), and related accessories to build a residential energy storage system. The system is used to store the direct current (DC) generated by photovoltaic (PV) in the connected battery and convert the direct current (DC) generated by the connected battery into alternating current (AC) and provide it to the home grid.


Specification


Item

Parameters

Nominal Voltage

51.2V

Nominal Capacity

100Ah

Discharge Voltage

45~54V

Charge Voltage

51.5V~54V

Cont. Charge Current

50A

Max. Charge Current

100A

Cont. Discharge Current

65A

Cont. Discharge Current

100A

Cont. Discharge DC Power

3000W

Max. Discharge DC Power

5000W/ More than 2 units in parallel

Operating temperature

0℃ ~ 45℃ (Charge)

-20℃ ~ 45℃ (Discharge)

Scalability

Up to 4 units

DOD

90%

Communication

CAN2.0 / RS485

Cycle Life

>6000

IP Grade

IP31

Installation

Wall or Floor mount

Dimension

745×460×165mm

Weight

49.5kg

Warranty

5 Years

Certification

UN38.3/IEC62619/CE
