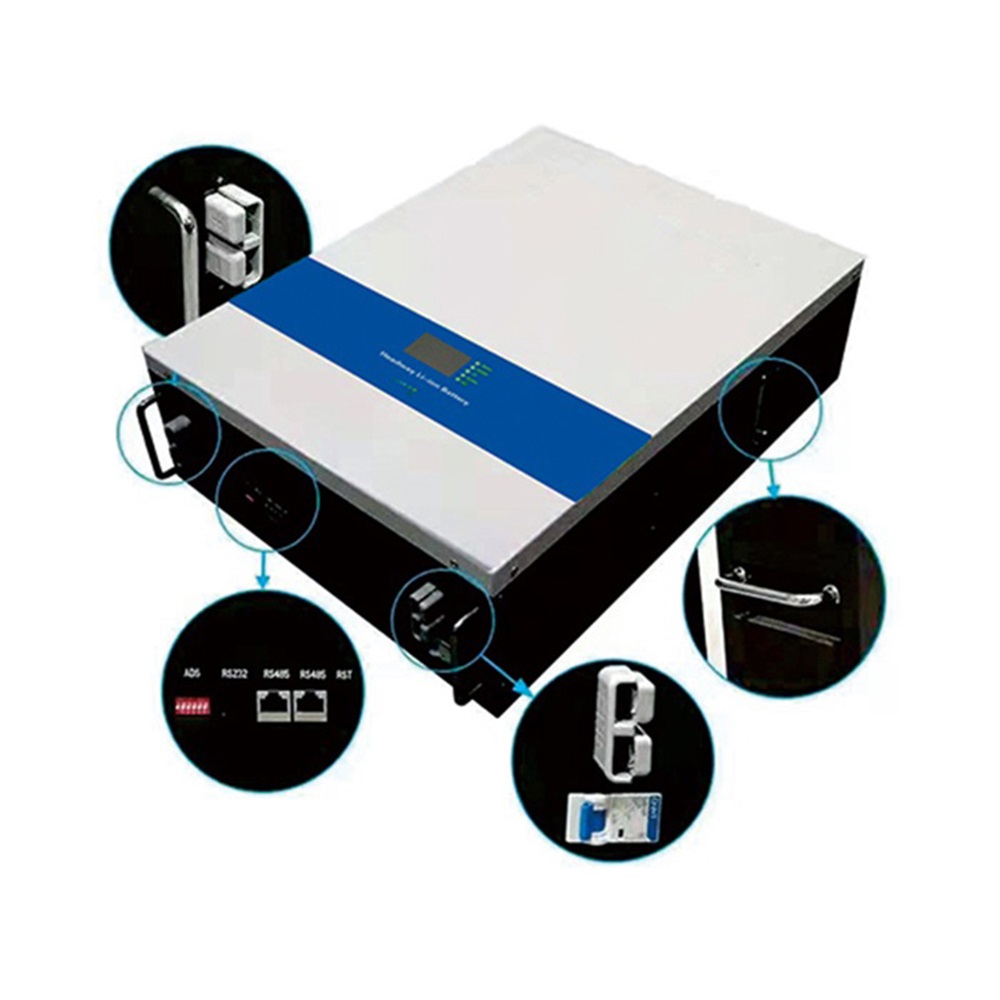

48V 100Ah Solar backup storage Batteries For Home
● Longer Cycle Life: Offers up to 10 times longer cycle life and 5 times longer float/calendar life than lead acid battery. Helping to minimize replacement cost and reduce total cost of ownership.
● Lighter Weight: About 40% of the weight of a comparable lead acid battery. A ”drop in” replacement for lead acid battery.
● Higher Power: Delivers twice power of lead acid battery, even high discharge rate, while maintain high energy capacity.
● Wider Temperature Range: -10℃~60℃
● Superior Safety: Lithium iron phosphate chemistry eliminates the risk of explosion or combustion due to high impact, over charging or short circuit situation.
● No Memory Effect: Support unstable partial state of charge (UPSOC) (charge/discharge) utilization.
Item | Parameter |
Rated Voltage | 48V |
Rated Capacity | 50AH |
Working Voltage Range | 42-54.6V |
Charge Current (Recommended) | 10A |
Continuous Discharge Current | 50A |

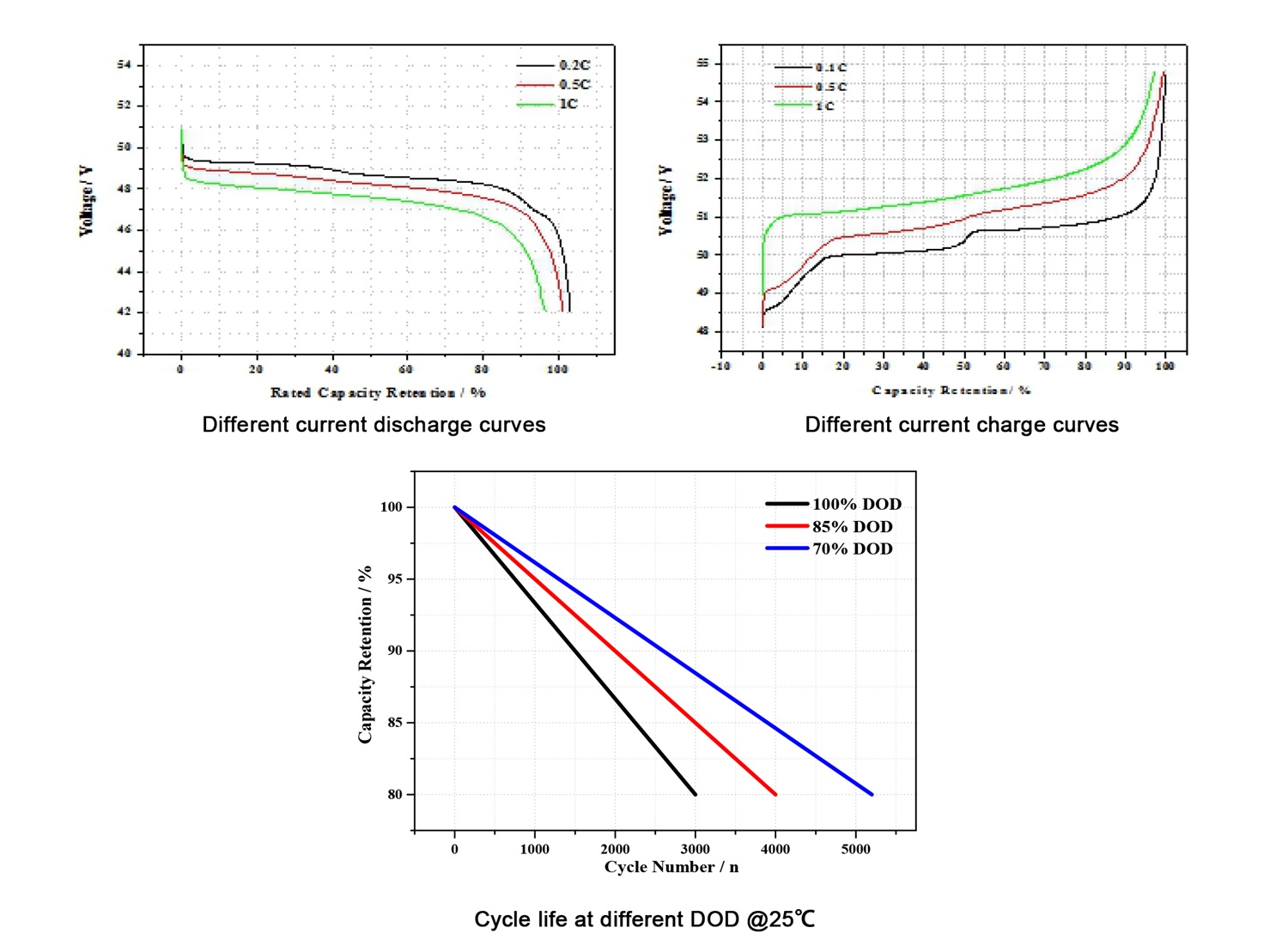

Life Cycle Time(80%DOD) | 5000 times |
Calendar Life | 10years |
Size | 480mm*477mm*177mm |
Weight | ~32kg |
Charge Temperature | 0~55℃ |
Discharge Temperature | -20~55℃ |
Status Indicators | SOC/ALM/RUN |
Communication Ports | 1*RS232/2*RS485/2*CAN |
Reset Key | Available |
LCD Screen | Optional |
Communication in Parallel | 15 models in maximum |
● Over charge detection function
● Over discharge detection function
● Over current detection function
● Temperature protection function
● Short circuit detection function
● Balance function
