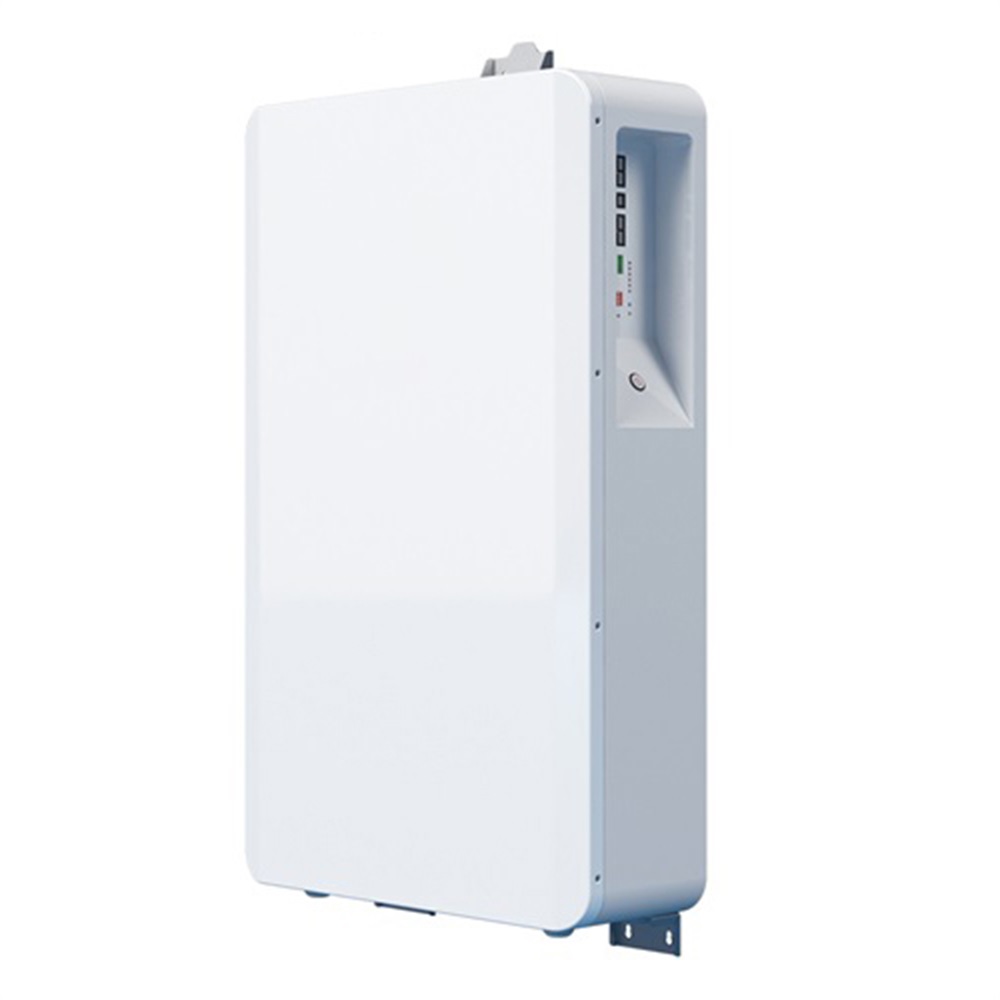

48V 100Ah 5KWH Home Battery Storage

48V 100Ah 5KWH Wall Mount Lithium Battery For Home Battery Storage

48V 100Ah 5KWH Wall Mount Lithium Battery For Home Battery Storage


home battery storagehome battery storage




This product is mainly combined with the inverter, photovoltaic (PV), and related accessories to build a residential energy storage system. The system is used to store the direct current (DC) generated by photovoltaic (PV) in the connected battery and convert the direct current (DC) generated by the connected battery into alternating current (AC) and provide it to the home grid.

(Note: The actual Residential ESS may also include electrical equipment such as distribution boxes and metering meters)

The product is a lithium-ion battery that can store electrical energy and outputs DC current. It only maintains an electrical connection with the inverter.    The electrical energy generated by the PV is converted by the inverter DC to DC and stored in the connected it. When Powerporter is needed, its electrical energy is converted by the inverter DC to AC and transmitted to the home grid to provide power for household appliances.

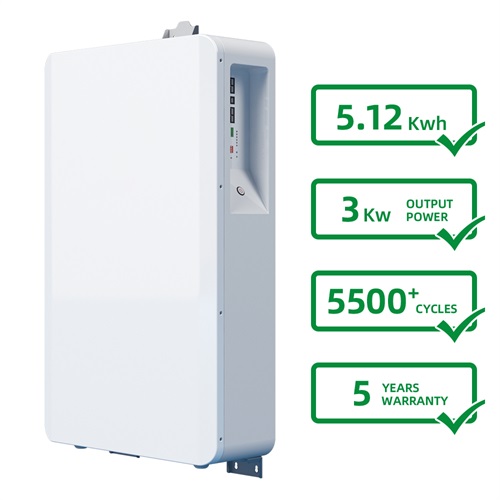

Main Parameters of 5KWH LiFePO4 Battery


Energy Capacity: 5kWh

DOD: 95%

Output: 3kW

Size and Weight: 745×460×165mm/49.5kg

IP Grade: IP31

Installation: Floor or Wall mounted

Warranty: 5years

Certification: UN38.3, IEC62619, CE


Applications

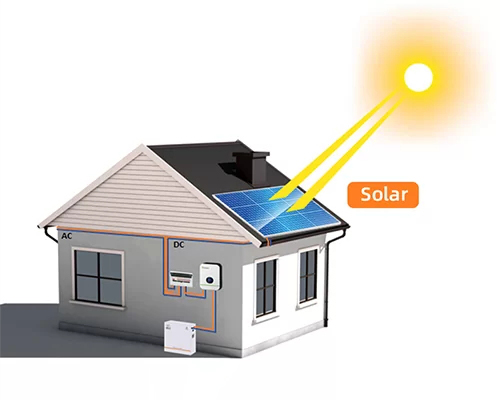

daytime

1. Solar charge the battery during the day.

2. Use your stored energy anytime to power your home

3 It can be used as a backup in the city during a power outage

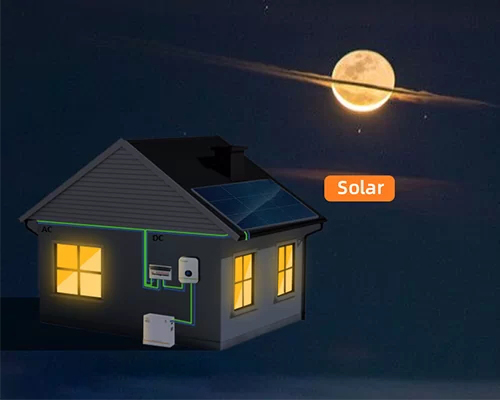

night

1. Solar charge the battery during the day.

2. Use your stored energy anytime to power your home

3. It can be used as a backup in the city during power outages.



Item

Parameters

Nominal Voltage

51.2V

Nominal Capacity

100Ah

Discharge Voltage

45~54V

Charge Voltage

51.5V~54V

Cont. Charge Current

50A

Max. Charge Current

100A

Cont. Discharge Current

65A

Cont. Discharge Current

100A

Cont. Discharge DC Power

3000W

Max. Discharge DC Power

5000W/ More than 2 units in parallel

Operating temperature

0℃ ~ 45℃ (Charge)

-20℃ ~ 45℃ (Discharge)

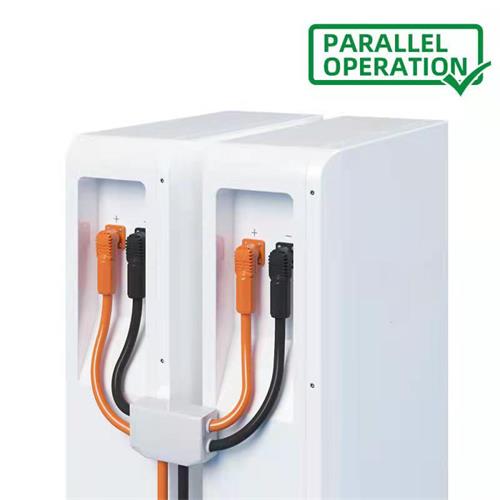

Scalability

Up to 4 units

DOD

90%

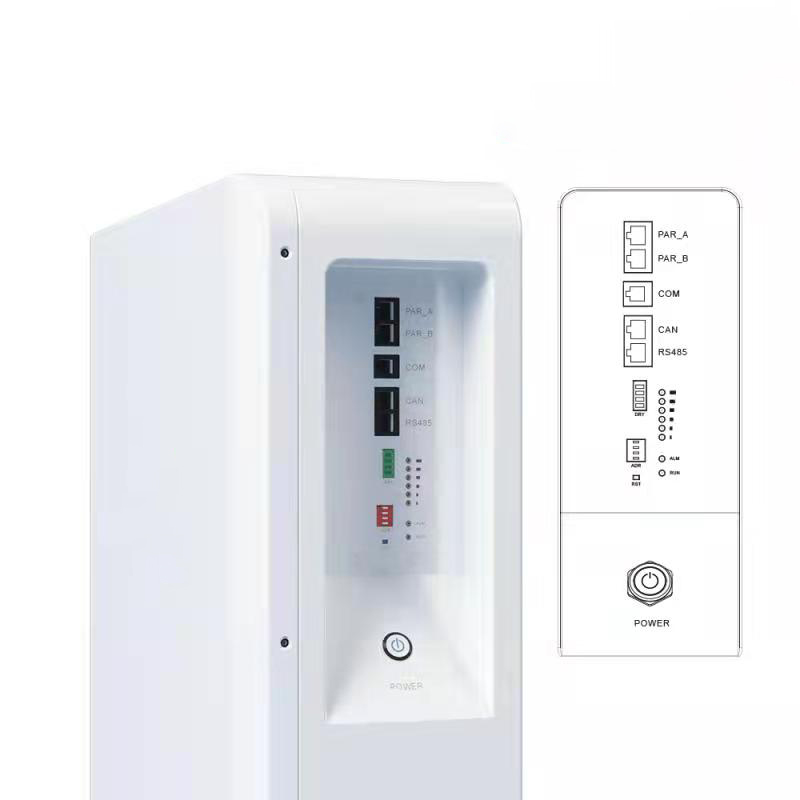

Communication

CAN2.0 / RS485

Cycle Life

>6000

IP Grade

IP31

Installation

Wall or Floor mount

Dimension

745×460×165mm

Weight

49.5kg

Warranty

5 Years

Certification

UN38.3/IEC62619/CE

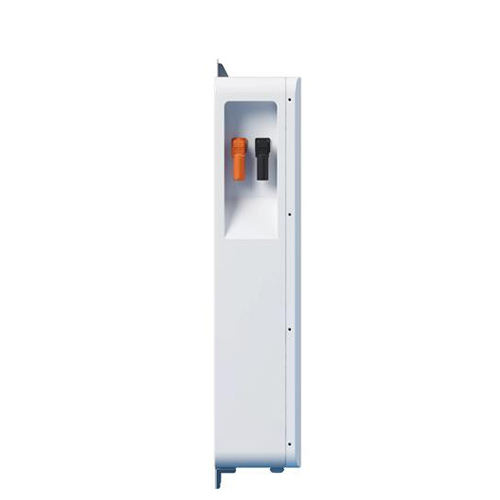

Detail Images


wall mounted batterywall mounted battery



REMARK INFORMATION


1. Before connecting, please make sure that the open circuit voltage of the photovoltaic array is within the acceptable range of the inverter to which the product is adapted, otherwise, the product may be damaged.

2. Never use any solvents, abrasives, or corrosive substances to clean this product.

3. Do not store or place any objects on the product. It may cause serious defects or malfunctions.

4. Before connecting the product to the inverter terminal, make sure that the product is turned off, the inverter is turned off and the mains and PV channels are disconnected.

5. The wiring terminal of the product is only allowed to be connected to the adaptable inverter. Do not connect this product directly to the AC power supply or generator. Connecting the product to other external devices may cause serious damage to the device.

6. The product transportation process should be as stable as possible, to avoid the product in an environment of severe vibration.

7. The supply of products should be performed or supervised by personnel with battery knowledge and necessary precautions.
