2.4Kwh-19.2 Floor Mounted Solar Battery

EVL Developed series Ground Eco Solar battery system apply with the most advanced LiFePo4 technology. We provide complete solution for home energy storage

EVL-300 Floor mounted Solar Energy Storage System 2.4Kwh-19.2Kwh


2.4Kwh-19.2 Floor Mounted Solar Battery



EVL Developed a series of Ground Eco Solar battery systems applied with the most advanced LiFePo4 technology. We provide complete solutions for home energy storage solar systems.


Features


Floor mounted

Low voltage system

Modular design, convenient maintenance, and expansion

2.4Kwh - 19.2Kwh

Voltage: 51.2 v (48v system)

Battery cell Type: Prismatic LiFePo4 cell

Flexible parallel

Communication: CAN, RS232, RS485

Low temp is available. Real-time monitor battery



Solar Energy Storage System

Low voltage

Capacity Energy

2400Wh(Per Pack)

Capacity

50Ah(Per Pack)

Suggested SOC

5%~95%

Nominal Voltage

48V

Operation Voltage

39V~54.75V

Maximum Charging/Discharging Current

50A/50A Per Pack

Operation Temperature

Charge: 0~45℃ Discharge: -20~45℃

Storage Temperature

-20~45℃

Weight

32kg

Dimension

480*280*860mm

Certification

MSDS, UN38.3, RoHS, CE

IP Grade

IP54

Cycle Life

6000 cycles @ 25℃ 80%DOD

Communication

RS232, RS485, CAN

Module Capacity Energy

1PACK-2400wh

2PACKS-4800wh

3PACKS-7200wh

4PACKS-9600wh

The maximum 8 battery packs

can be parallelly communicated

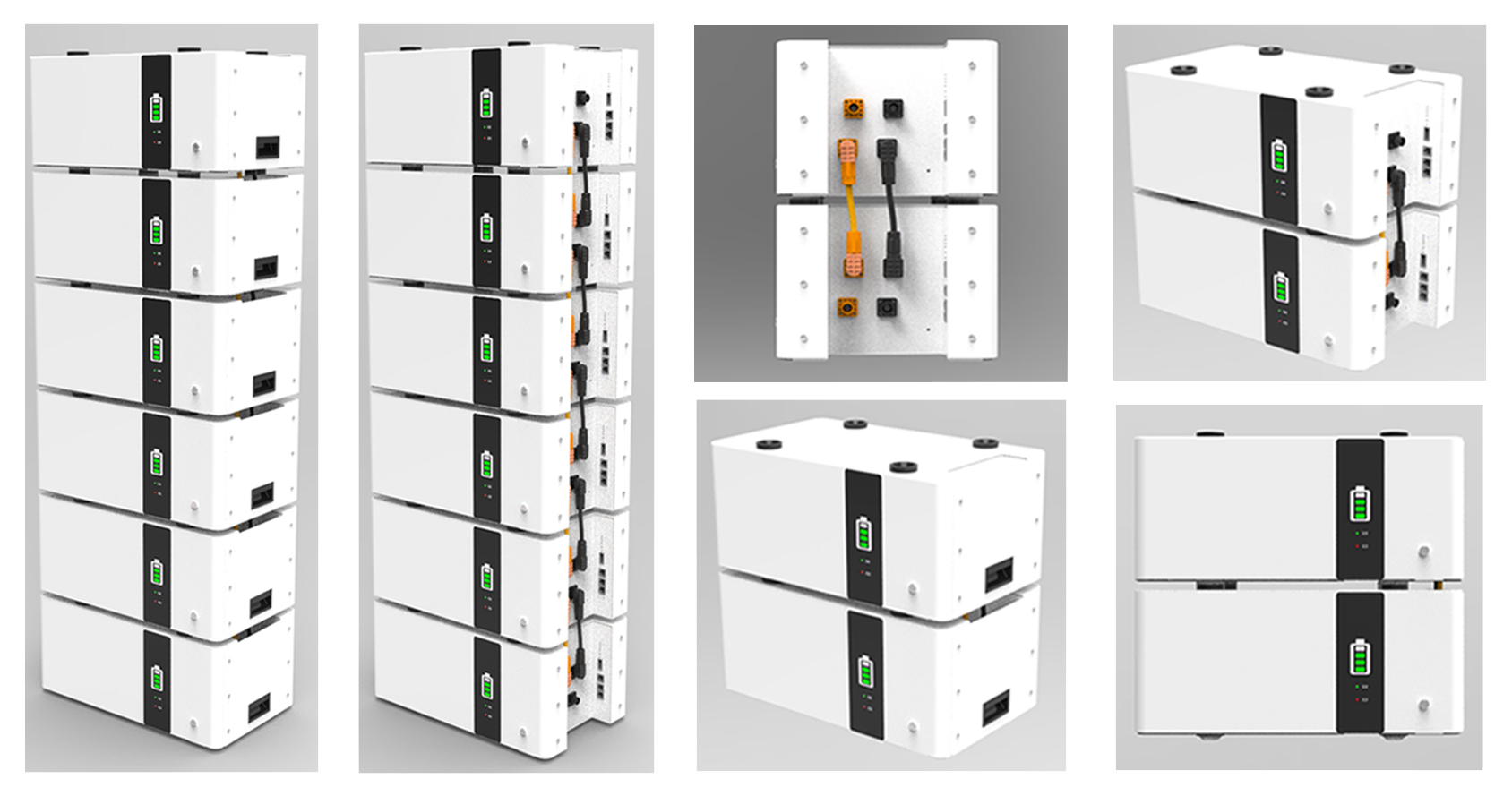

This Solar Lithium battery Ground Ecosystem design allows you to add more battery packs to increase the capacity.   Each battery pack is in a parallel connection.
