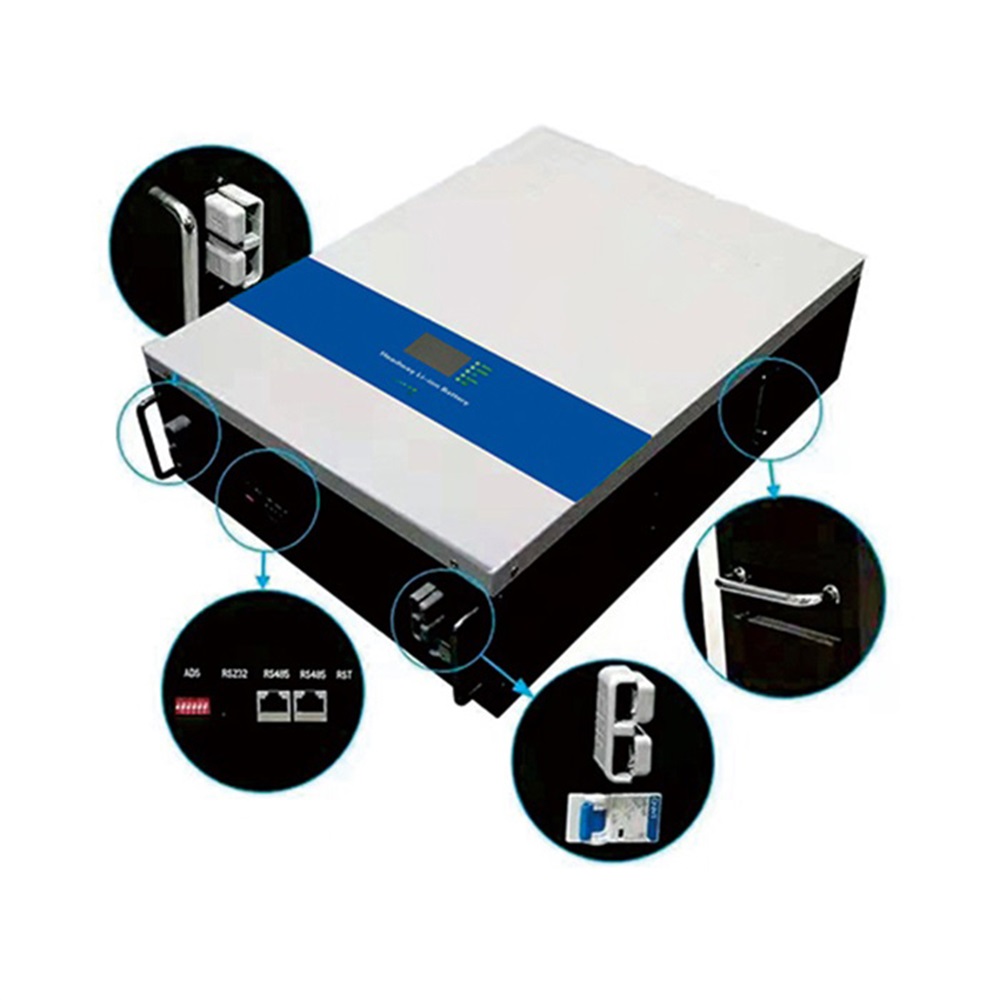

Lithium Solar Batteries 48V 100Ah LiFePO4 5KWh Backup Household Batteries

48V 100Ah LiFePO4 backup batteries offer longer life, lighter weight, higher power, superior safety, and wide temperature range for reliable, cost-effective performance.

Features of 48V 100Ah LiFePO4 Backup Batteries:

● Longer Cycle Life: Offers up to 10 times longer cycle life and 5 times longer float/calendar life than lead acid battery. Helping to minimize replacement cost and reduce total cost of ownership.

● Lighter Weight: About 40% of the weight of a comparable lead acid battery. A ”drop in” replacement for lead acid battery.

● Higher Power: Delivers twice power of lead acid battery, even high discharge rate, while maintain high energy capacity.

● Wider Temperature Range: -10℃~60℃

● Superior Safety: Lithium iron phosphate chemistry eliminates the risk of explosion or combustion due to high impact, over charging or short circuit situation.

● No Memory Effect: Support unstable partial state of charge (UPSOC) (charge/discharge) utilization.


Specifications of 48V 100Ah LiFePO4 Backup Batteries:


Item

Parameter

Rated Voltage

48V

Rated Capacity

50AH

Working Voltage Range

42-54.6V

Charge Current (Recommended)

10A

Continuous Discharge Current

50A

Life Cycle Time(80%DOD)

5000 times

Calendar Life

10years

Size

480mm*477mm*177mm

Weight

~32kg

Charge Temperature

0~55℃

Discharge Temperature

-20~55℃

Status Indicators

SOC/ALM/RUN

Communication Ports

1*RS232/2*RS485/2*CAN

Reset Key

Available

LCD Screen

Optional

Communication in Parallel

15 models in maximum



Functions of BMS:

 Over-charge detection function

Over-discharge detection function

 Over-current detection function

 Temperature protection function

 Short circuit detection function

 Balance function

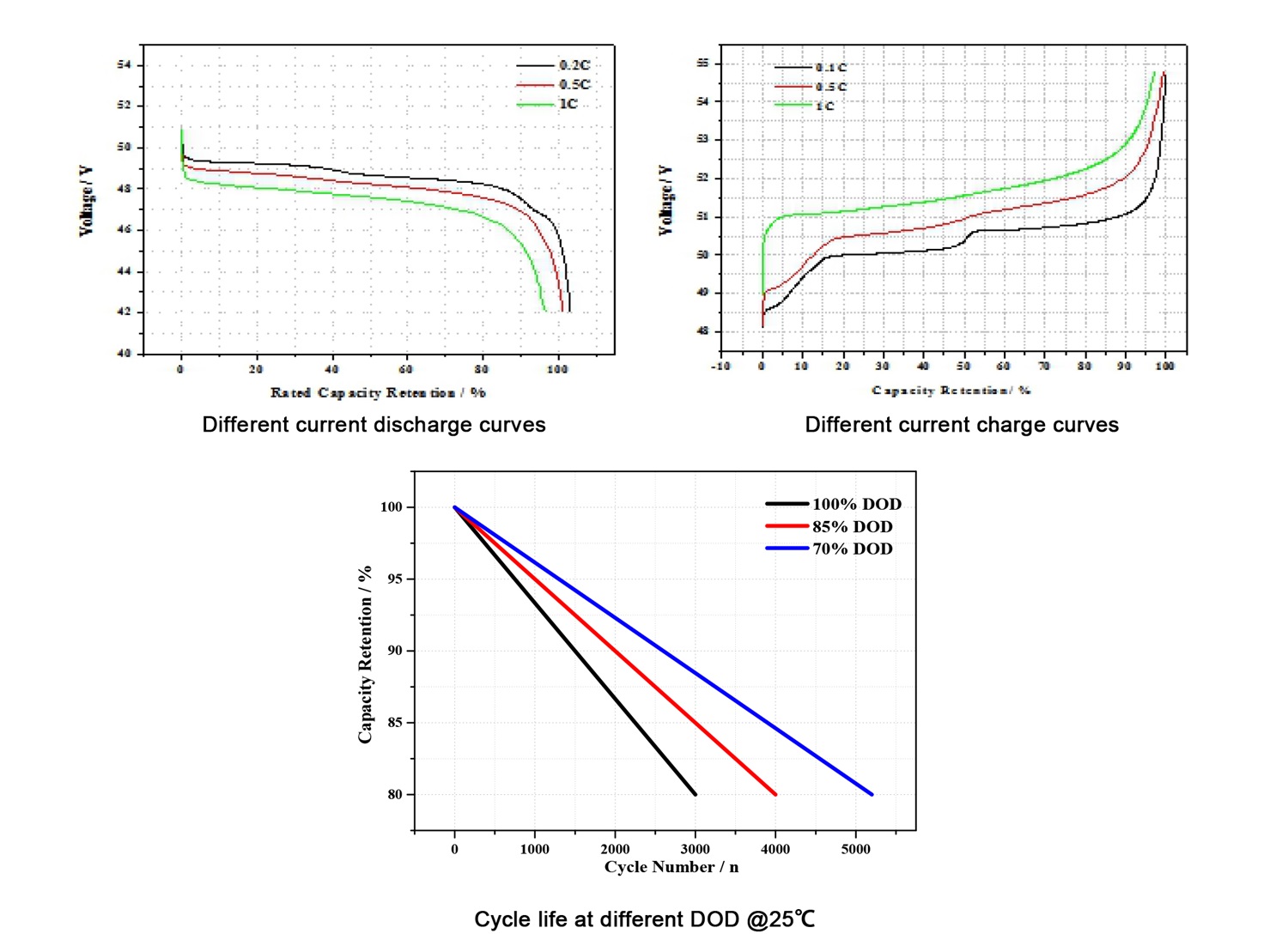

curve
