LiFePO4 Battery Cell：Prismatic vs Pouch vs Cylindrical Lithium Ion Battery Cell
Lithium-ion LiFePO4 batteries have become the preferred energy storage solution for a wide range of applications, including portable electronics, electric vehicles, and renewable energy systems. Within the realm of LiFePO4 technology, there are different cell designs, each offering unique features and benefits. In this article, we explore the world of prismatic, pouch, and cylindrical LiFePO4 battery cells, comparing their structures, advantages, and ideal use cases.
What is a Prismatic Cell in a Lithium ion LiFePO4 Battery?
A prismatic cell is a type of LiFePO4 battery with a rectangular or square shape, offering a flat and often stackable design. Unlike cylindrical cells, which are tubular, prismatic cells feature a more compact form, with the electrode materials arranged in layers and encased in a durable metal casing. These cells are ideal for applications where space efficiency is essential, as their flat structure allows for optimized packaging in various devices. It's important to recognize that prismatic lithium-ion lifepo4 cells are only one of several cell designs available, each offering distinct advantages and disadvantages. The selection of the appropriate cell type depends on the specific needs and requirements of the application.
Advantages of Prismatic LiFePO4 Cells
Space Efficiency: Prismatic LiFePO4 cells are designed with a flat, compact structure, making them perfect for applications where space is limited and efficient use of available space is crucial.
Stackability: The rectangular shape of these cells allows for easy stacking, facilitating the creation of battery packs with higher energy density and optimized space utilization.
Improved Thermal Performance: The flat design of prismatic cells enhances heat dissipation, helping to maintain optimal temperature control during operation and contributing to better thermal management.
Longer Lifespan: LiFePO4 prismatic cells are known for their extended cycle life compared to other lithium-ion batteries, making them a reliable choice for long-term applications. Their stability and resistance to overheating enhance their overall durability.
Enhanced Safety: With the inherent stability of LiFePO4 chemistry, prismatic cells offer a higher level of safety, reducing risks of thermal runaway or combustion, which is especially important in high-power applications.
What is a Pouch LiFePO4 Battery Cell?

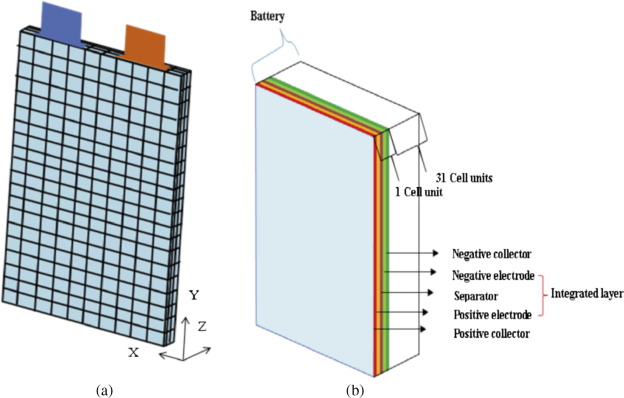

A pouch LiFePO4 battery cell, also known as a flexible or flat-cell battery, is a type of lithium-ion battery that features a flexible, flat, pouch-like design using LiFePO4 (Lithium Iron Phosphate) as the cathode material. Unlike traditional cylindrical or prismatic cells, pouch cells are typically constructed by layering flat electrodes and separators, which are then sealed in a flexible, heat-sealed pouch made of materials such as aluminum or specialized polymers. This design offers a lightweight and compact structure, making it ideal for space-constrained applications.
Advantages of Pouch Cells
Flexibility and Adaptability: Pouch cell battery can be molded into various shapes, making them highly adaptable to irregular spaces and unconventional designs.
Weight Reduction: The absence of a rigid casing reduces the overall weight of the cell, making lithium ion pouch cells a preferred choice for applications where weight is a critical factor.
Cost-Effectiveness: The manufacturing process for lithium ion pouch cells is often simpler and less resource-intensive, contributing to cost savings.
What is a LiFePO4 Cylindrical Lithium-ion Battery?

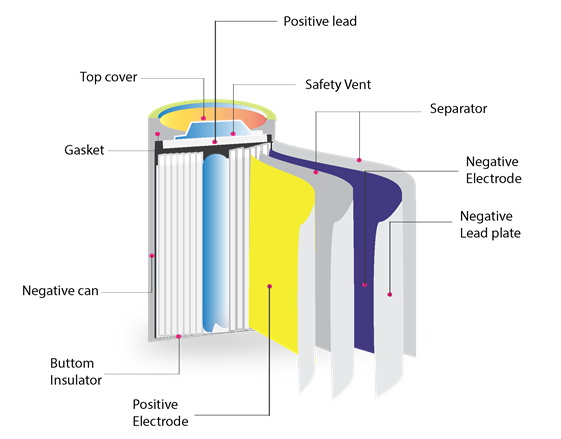

A LiFePO4 cylindrical lithium-ion battery is a type of rechargeable battery that features a cylindrical shape and uses Lithium Iron Phosphate (LiFePO4) as the cathode material. These batteries are enclosed in a cylindrical metal casing, which houses internal components like the positive and negative electrodes, separator, and electrolyte. The most common LiFePO4 cylindrical battery is the 18650 cell, named for its dimensions: 18 millimeters in diameter and 65 millimeters in length. While the 18650 cell is the most widely used, other cylindrical form factors, such as the 26650 and 2170 cells, are also available, each with varying dimensions and specifications. LiFePO4 cylindrical cells are known for their safety, thermal stability, and long cycle life, making them suitable for applications in electric vehicles, energy storage, and other high-power systems.
Advantages of Cylindrical Cells
Proven Reliability: Cylindrical lithium ion battery cells have been in use for a long time and have a proven track record of reliability and safety.
Ease of Manufacturing: The cylindrical design lends itself to mass production, leading to economies of scale and lower manufacturing costs.
Widespread Applications: Cylindrical lithium ion battery cells are commonly found in a wide range of applications, including consumer electronics, power tools, and electric vehicles.

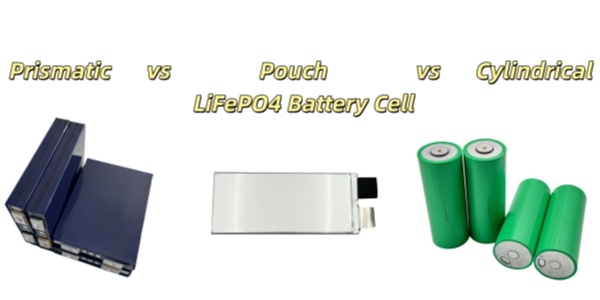

Prismatic vs Pouch vs Cylindrical LiFePO4 Battery Cells

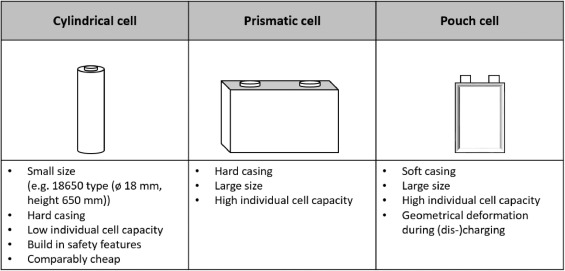

Prismatic, pouch, and cylindrical LiFePO4 battery cells are three popular form factors, each offering distinct advantages depending on the application. The choice of form factor depends on factors such as space, energy density, thermal performance, and safety requirements. Here’s a quick comparison of the three types:
Space Efficiency
Prismatic cells are highly space-efficient due to their flat, rectangular design, allowing for optimal use of space.
Pouch cells are versatile and can be tailored to fit various shapes and sizes, offering flexibility in design.
Cylindrical cells are compact and stackable, making them effective for applications with specific space constraints.
Flexibility
Prismatic cells are less flexible due to their rigid structure and fixed shape.
Pouch cells offer high flexibility, easily conforming to irregular spaces and designs.
Cylindrical cells are moderately flexible but less adaptable to non-standard shapes.
Weight
Prismatic cells typically have a moderate weight, depending on the materials used in their construction.
Pouch cells are lightweight thanks to their thin, flexible packaging.
Cylindrical cells have a moderate weight, mainly due to their metal casing.
Cost
Prismatic cells can be more expensive to manufacture due to their complex design.
Pouch cells are generally more cost-effective, thanks to simpler production processes.
Cylindrical cells benefit from economies of scale, making them relatively affordable due to their widespread use.
Conclusion
In the ever-evolving field of LiFePO4 battery technology, the choice between prismatic, pouch, and cylindrical cells depends on the specific requirements of the application. Each design offers unique advantages, and suppliers carefully consider factors such as space constraints, flexibility, weight, and cost to determine the most suitable battery type for a particular use. We provide professional customized solutions for LiFePO4 battery packs and Battery Management Systems (BMS) to meet your specific application needs.
