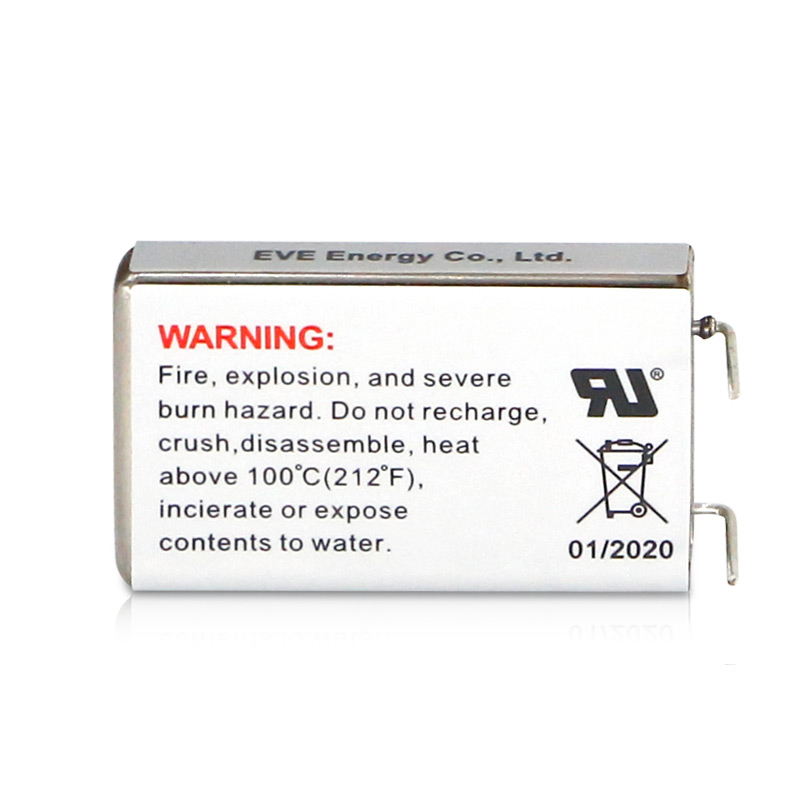

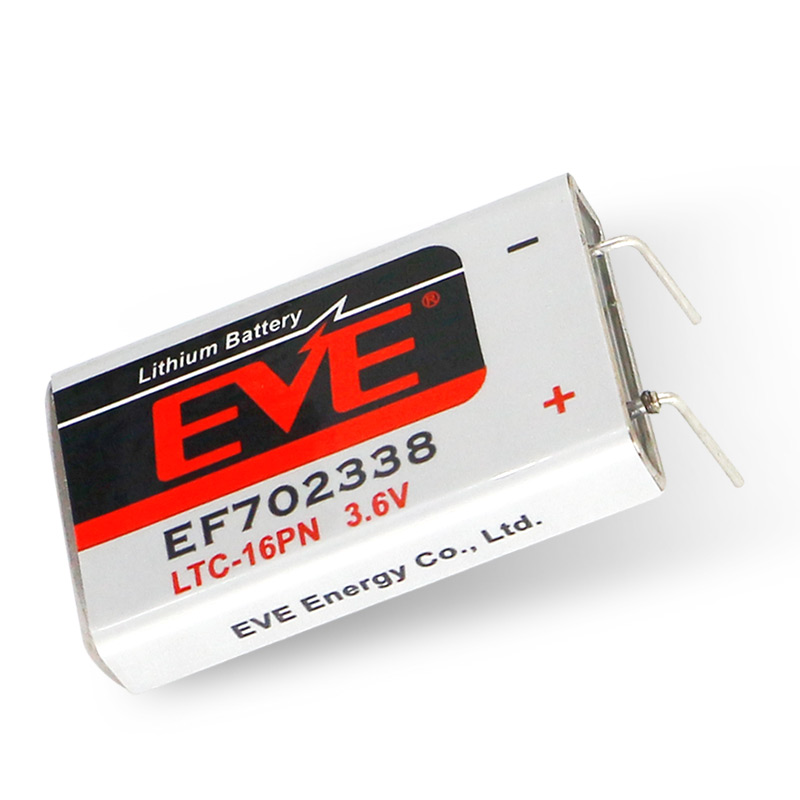

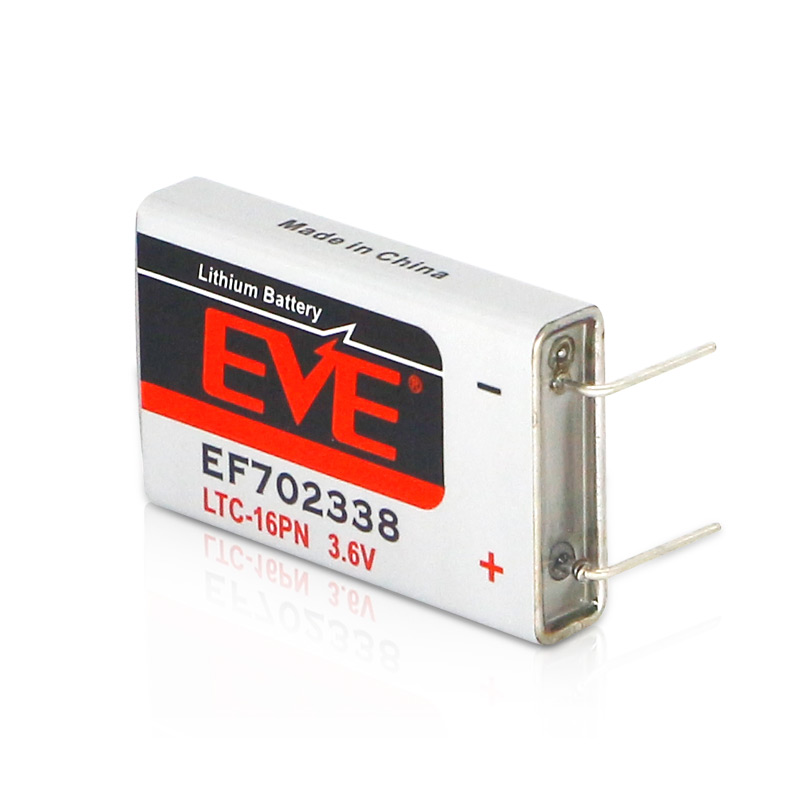

EF702338 LTC-16PN 3.6V 1600mAh Thionyl Chloride Lithium Battery
EF702338 LTC-16PN 3.6V 1600mAh thionyl chloride lithium battery, as a disposable battery, with a stable voltage, low self-discharge rate, and long life, is a high-quality choice for small equipment power supply.
- Category: Lithium Thionyl Chloride Li SOCl2 Battery
- Tag: Li SOCl2 battery
EF702338 LTC-16PN 3.6V 1600mAh Thionyl Chloride Lithium Battery integrates high energy, high performance, high safety, and strong adaptability to provide energy for your small equipment, stable voltage can ensure the smooth operation of your equipment.
Feature
· Voltage performance: Voltage stability
· Energy characteristics: High energy density
· Low self-discharge rate: only about 1% per year
· No memory effect: can be charged at any time.
· Fully sealed structure: prevent leakage
· Wide temperature range: -40 ℃ to 85℃
· Green and pollution-free: does not contain mercury, cadmium, lead, and other heavy metals
Specifications
Parameter | Specification |
Model | EF702338 |
Nominal voltage | 3.6V |
Nominal capacity | 1600mAH |
Maximum continuous discharge current | 20mA |
Maximum pulse discharge current | 50mA |
Lithium Weight | 16g |
Self-discharge rate | ≤1% |
Natural storage life | 10 years |
Storage temperature | - 20℃~ + 25℃ |
Operating temperature | -55℃~ + 85℃ |
Dimension | 23.3x38.3x7.5(mm) |

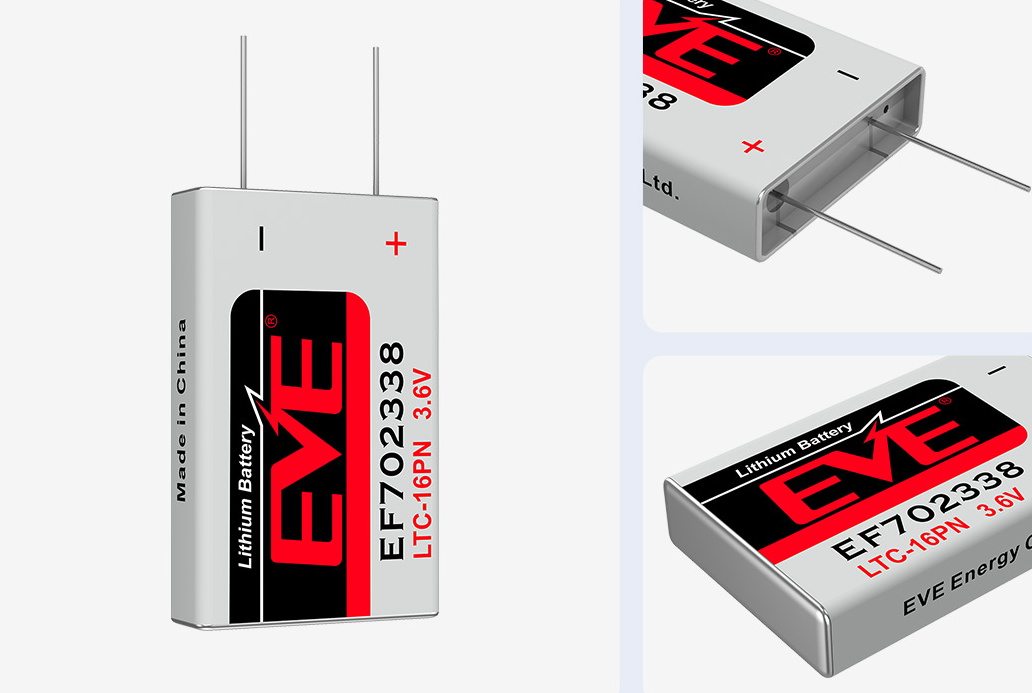

Product Details
3.6V Thionyl Chloride Lithium Battery Series
Model | Nominal voltage （V） | Nominal capacity (mAh) | Maximum continuous current(mA)
| Maximum pulse current(mA) | Weight (g) | Operating temperature(℃) | Dimension(mm) |
3.6 | 1200 | 35 | 50 | 10 | -55~+85℃ | 14.5x25.4 | |
3.6 | 1650 | 35 | 75 | 12 | -55~+85℃ | 14.5x33.5 | |
3.6 | 2700 | 60 | 150 | 19 | -55~+85℃ | 14.5x50.5 | |
3.6 | 3600 | 100 | 180 | 26 | -55~+85℃ | 17.5x51.0 | |
3.6 | 4000 | 130 | 180 | 28 | -55~+85℃ | 18.7x50.5 | |
3.6 | 8500 | 150 | 200 | 52 | -55~+85℃ | 26.2x50.0 | |
3.6 | 19000 | 230 | 300 | 100 | -55~+85℃ | 33.1x61.5 | |
3.6 | 400 | 5 | 20 | 5 | -55~+85℃ | 16.85x15.8x7.0 | |
3.6 | 750 | 10 | 30 | 8 | -55~+85℃ | 16.85x25.8x7.0 | |
EF702338 | 3.6 | 1600 | 20 | 50 | 16 | -55~+85℃ | 23.3x38.3x7.5 |
3.6 | 550 | 5 | 20 | 9 | -55~+125℃ | 24.3x6.2 | |
ER32L65 | 3.6 | 1000 | 10 | 50 | 19 | -55~+85℃ | 32.9x7.1 |
3.6 | 1700 | 10 | 50 | 24 | -60~+85℃ | 32.9x10 |
Product Certifications
Application
EF702338 lithium sub-battery 3.6V, 1600mAh is widely used in smart wearable devices, medical instruments, Internet of Things devices, industrial instruments, security equipment, and many other fields, to provide stable and lasting power support for all kinds of small electronic devices.
