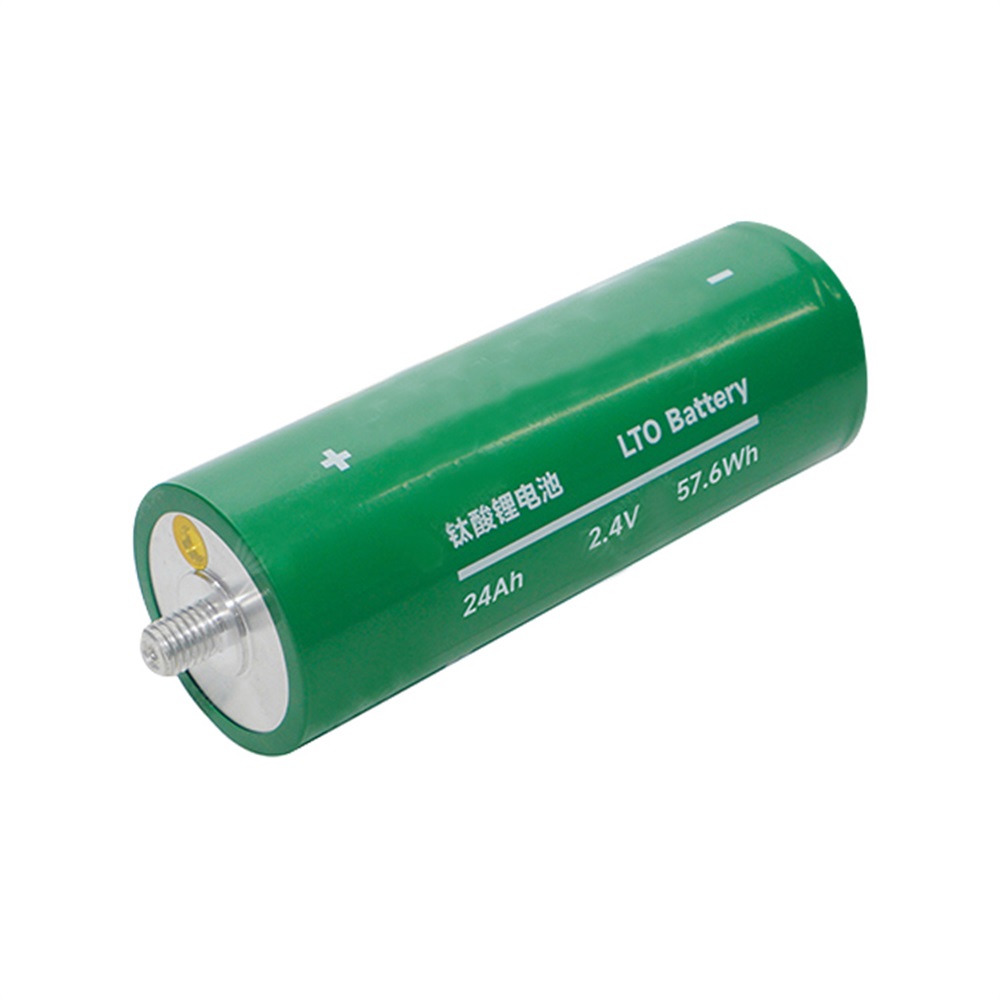

2.4V 24Ah LTO Lithium Titanate Battery Cell
The 2.4v 24Ah Lto Lithium Titanate Battery has a high rate, 6 minutes full charge, 6 minutes full discharge, and strong low-temperature tolerance.
- Category: Lithium Titanate LTO Battery
- Tag: Lithium Titanate LTO Battery
Based on LTO material technology and high energy density battery technology with independent intellectual property rights, the company has solved the industry problems of high-temperature gas production of LTO batteries and developed this product with excellent performance and cost-effectiveness. Advanced technology, simple process, low cost.
Advantages
High safety
No dendrite, good thermal stability, intrinsic safety
Long cycle life
More than 20 years
High rate
Fully charged in 6 min, completely discharged in 6 min
Wide Working Temperature
It can be charged and discharged repeatedly at -50~65℃
Recycle
Recycling rate of the cell ＞97%
Specifications
Items | PLITR60138MSTA-24Ah-2.4V | PLITR60138MWLA-24Ah-2.4V |
Weight | ≤830g | ≤800g |
Nominal capacity | 24Ah | 24Ah |
Nominal voltage | 2.4V | 2.4V |
Nominal Energy | 57.6Wh | 57.6Wh |
Energy Density | 69.4Wh/kg | 72Wh/kg |
Resistance | ≤0.45mΩ(AC, 1000Hz) | ≤0.5mΩ(AC, 1000Hz) |
Charging cut-off voltage | 2.8V | 2.8V |
Discharging cut-off voltage | 1.5V | 1.5V |
Standard charging current | 24A | 24A |
Standard discharging current | 24A | 24A |
Max. Constant Charging Current | 72A | 72A |
Max. Constant Discharging Current | 120A | 120A |
Max. Charging Current | 144A | 144A |
Max. Discharging Current | 240A | 240A |
Temperature Range for Storage | Less than one year： -10~25℃； -30~45℃ | Less than one year： -10~25℃； -30~45℃ |
Transportation Voltage | ≥2.4V | ≥2.4V |
Appearance | No crack, scratch, distortion, prominence， leakage, etc. | No crack, scratch, distortion, prominence， leakage, etc. |

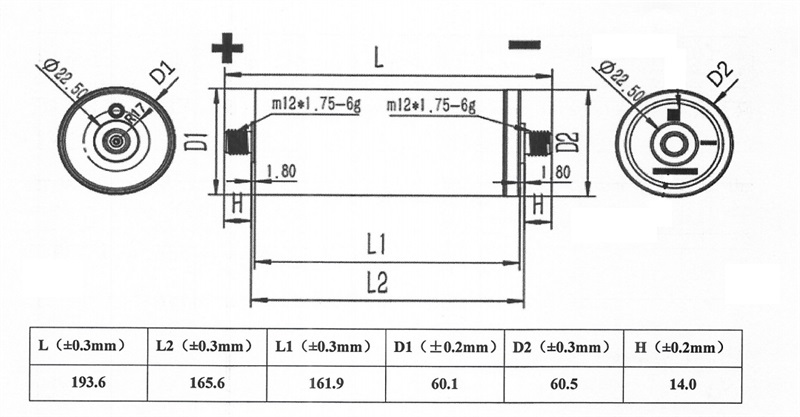

Appearance and Dimension
